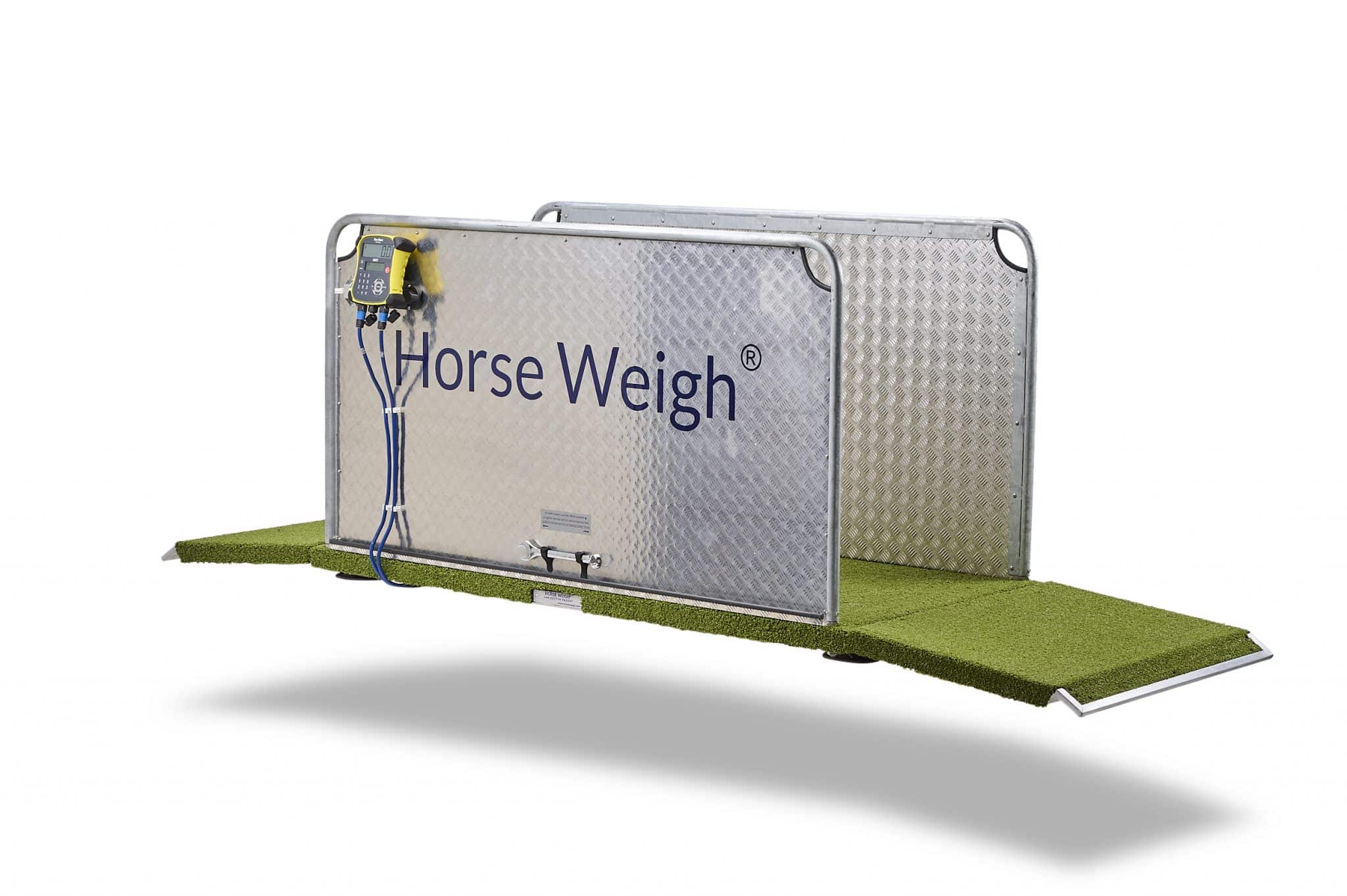

Curragh Weighing Platform (25% narrower than the Olympic)

Curragh Horse Weighbridge

Key points

  • Ideal for use with foals, young stock & all competition horses
  • 25% narrower than the Olympic model
  • Both sides of platform filled with light weight alloy panels
  • Astroturf Flooring ** Our extensive in house trials have shown that our Astroturf flooring is at least 50% quieter for the horses when walking on/off the Horse Weigh platforms, as compared to our previously supplied green and black rubber flooring surfaces.

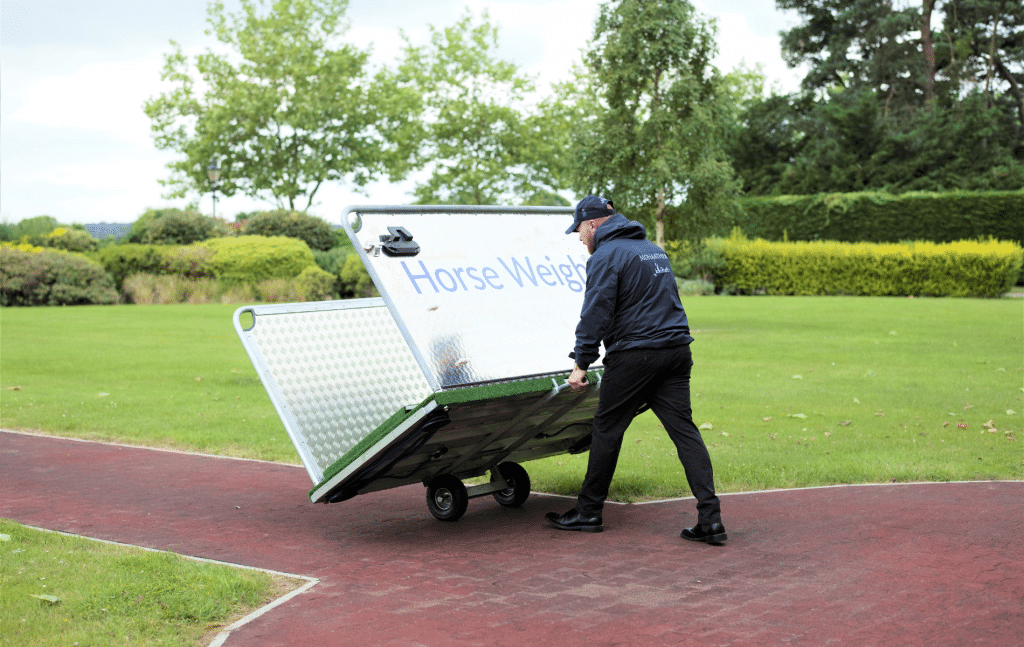

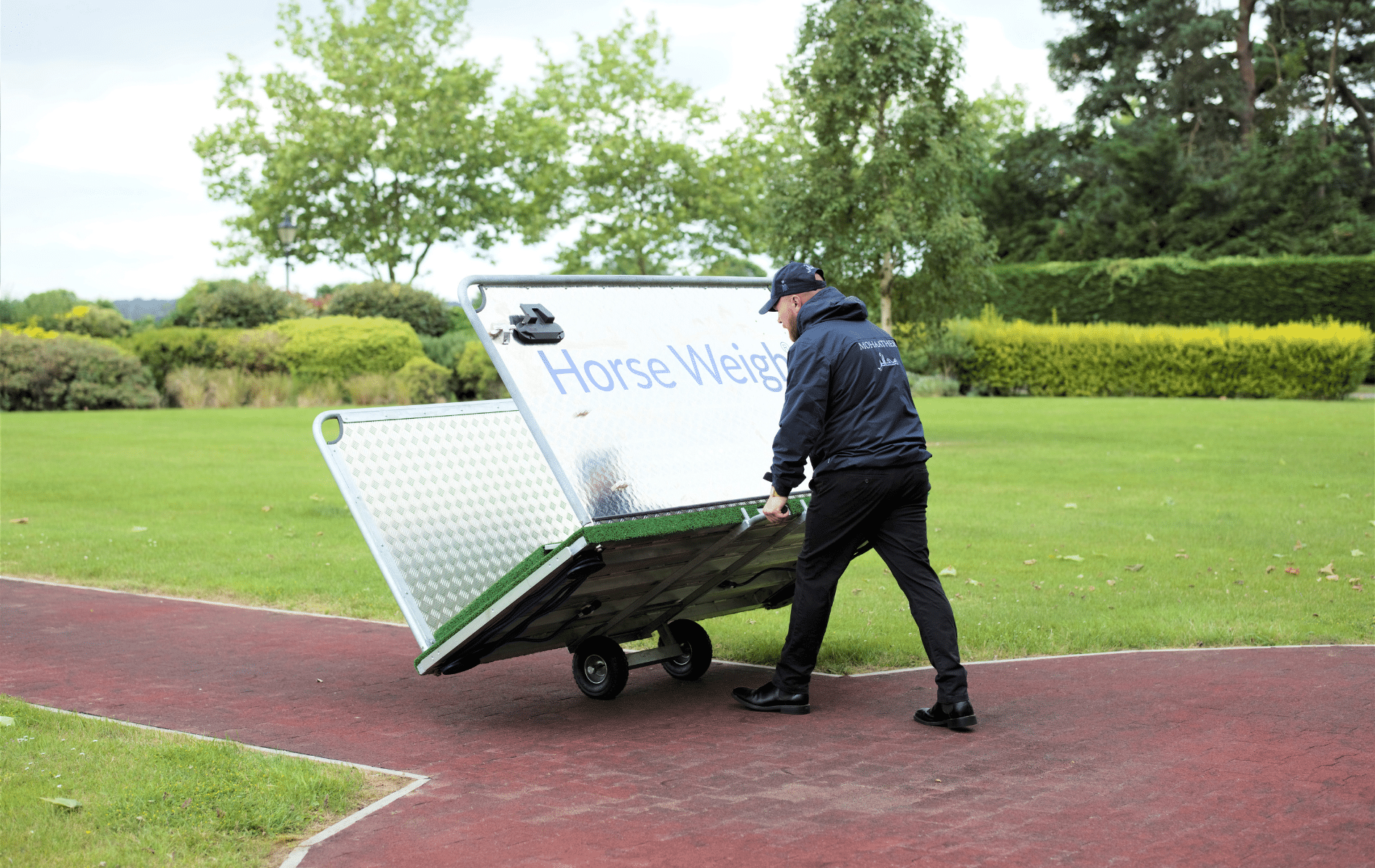

  • Comes with free transporting trolley or dolley, which means that it can be easily manoeuvred by all stable staff- See Users of the Curragh

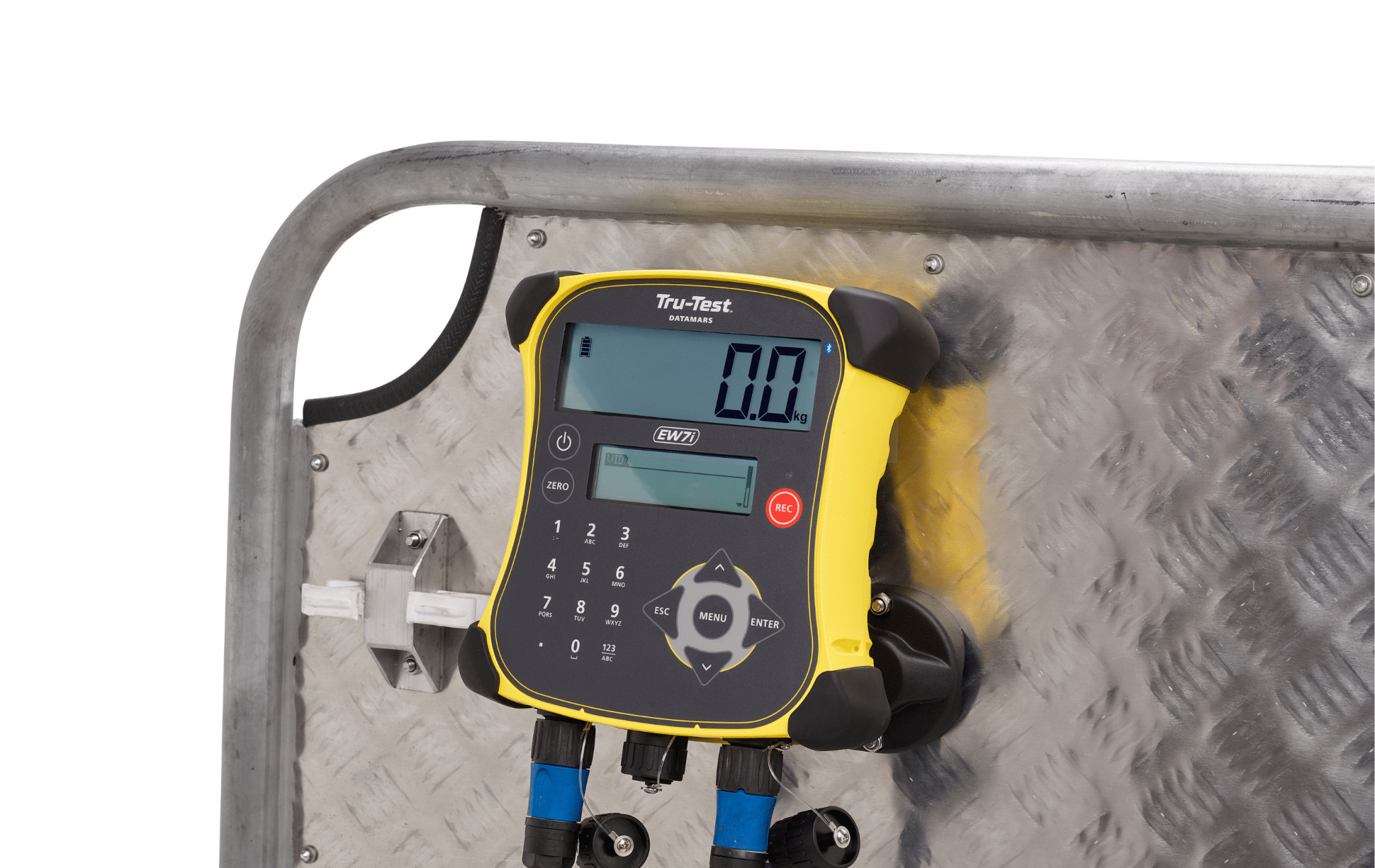

  • Comes complete with a hand-held ‘easy to use’ EziWeigh 7i Bluetooth digital electronic read-out unit which is mains rechargeable.
  • Comparisons for all the Weight Read-Out Indicators available as extra.
  • 24 months warranty
  •
Product Mobilty Delivery Times Curragh Users

Specifications


Product weight143 kg (315.2 lbs)
Platform height from ground10.8 cm (4.25″)
DimensionsHorse standing area – 2.14 m long x 0.975 m wide (84.3″ x 38.4″)
Ramps0.8 m long x 0.975 m wide (31.5″ x 38.4″)
Maximum weight capacity1500 kg (3300 lbs)
Overload capacity3000 kg (6600 lbs) – i.e. any sudden movement – for example, a horse rearing
Construction

Complete aluminium construction + high quality “non-slip” green astroturf (artificial grass) flooring **

PLEASE NOTE: The product images have not yet been updated to show the new green astroturf due to COVID-19 protocols. New product images will be published soon. For any queries please contact our team.
