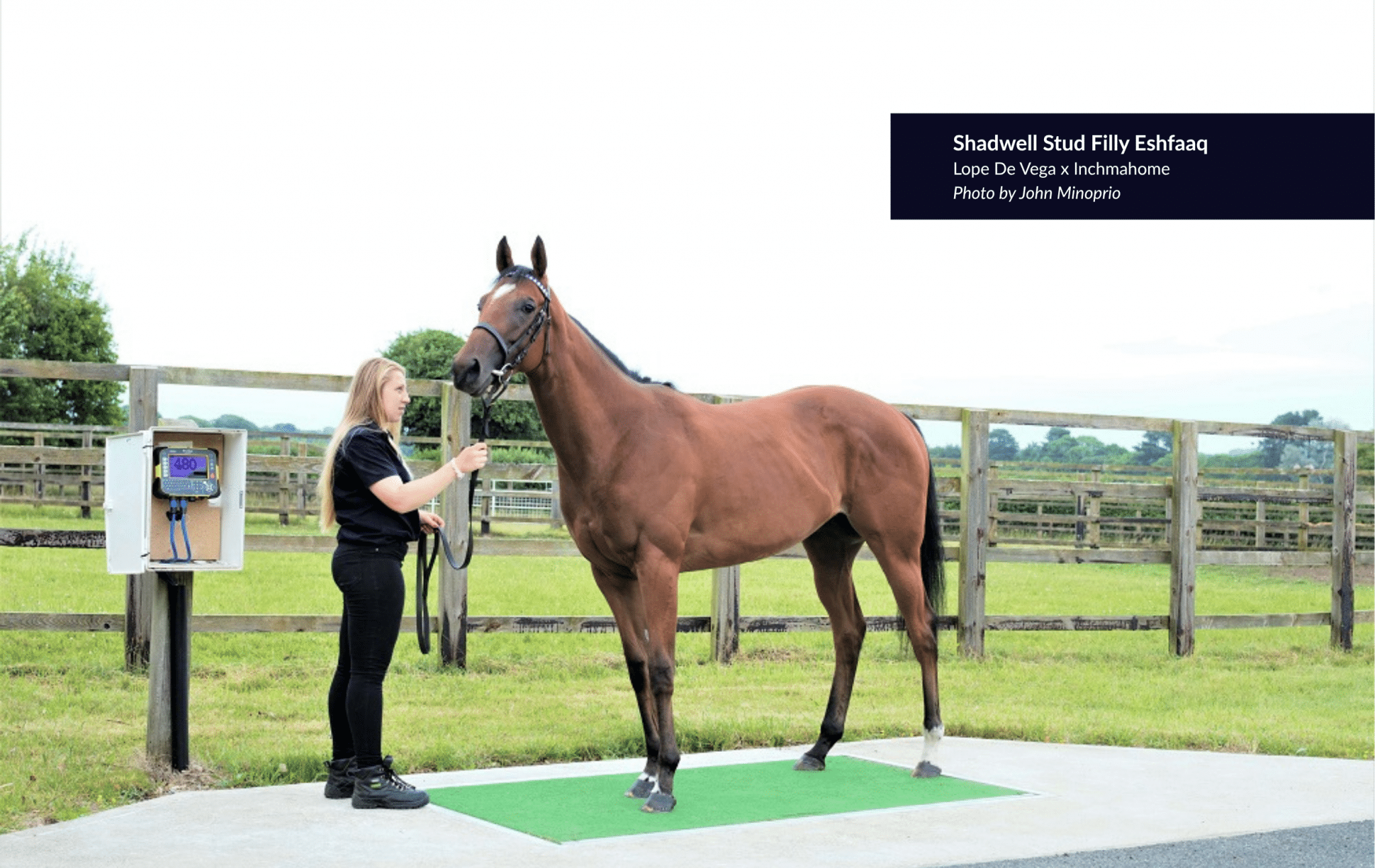

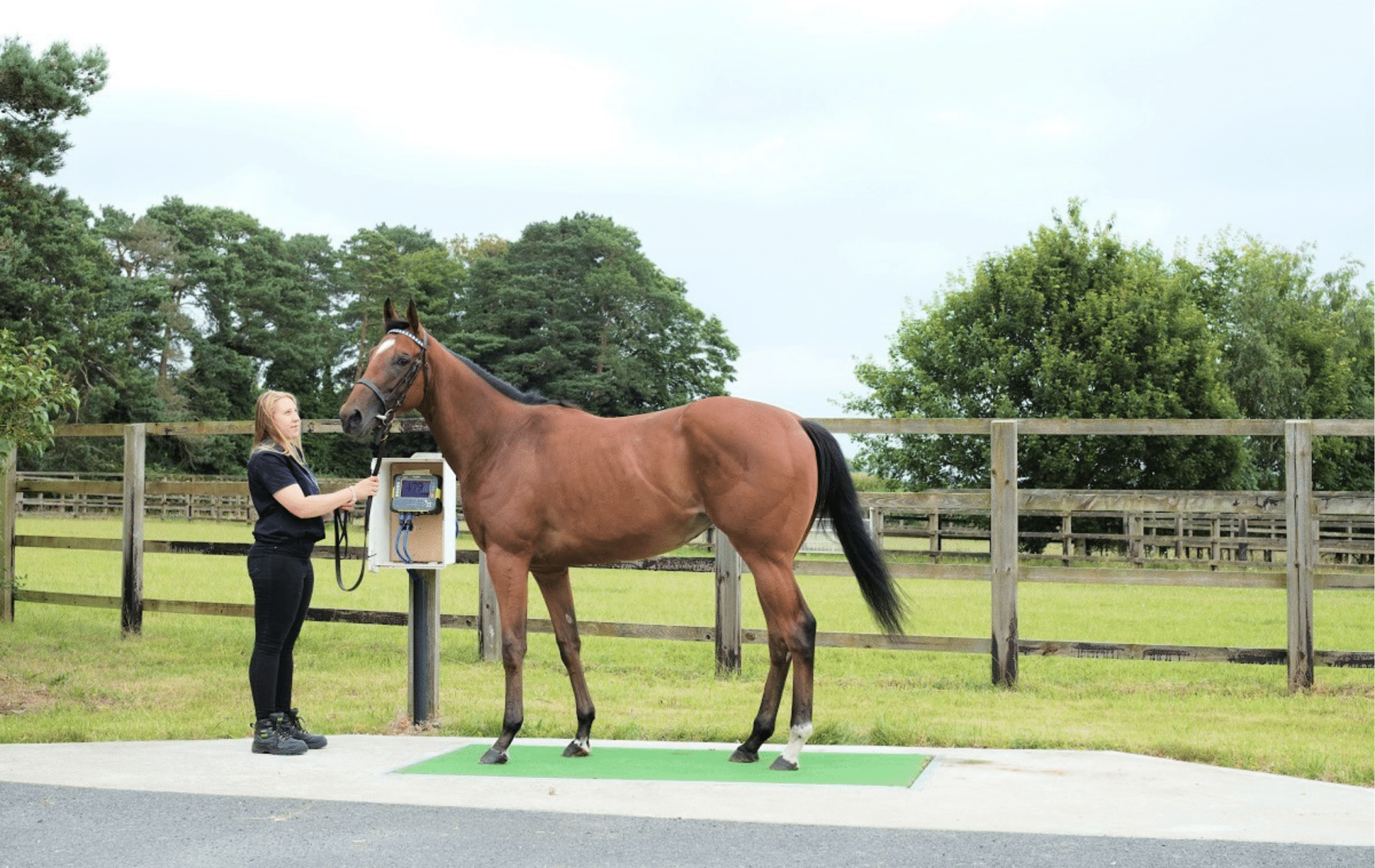

Static installation within its own recessed pit


Key points

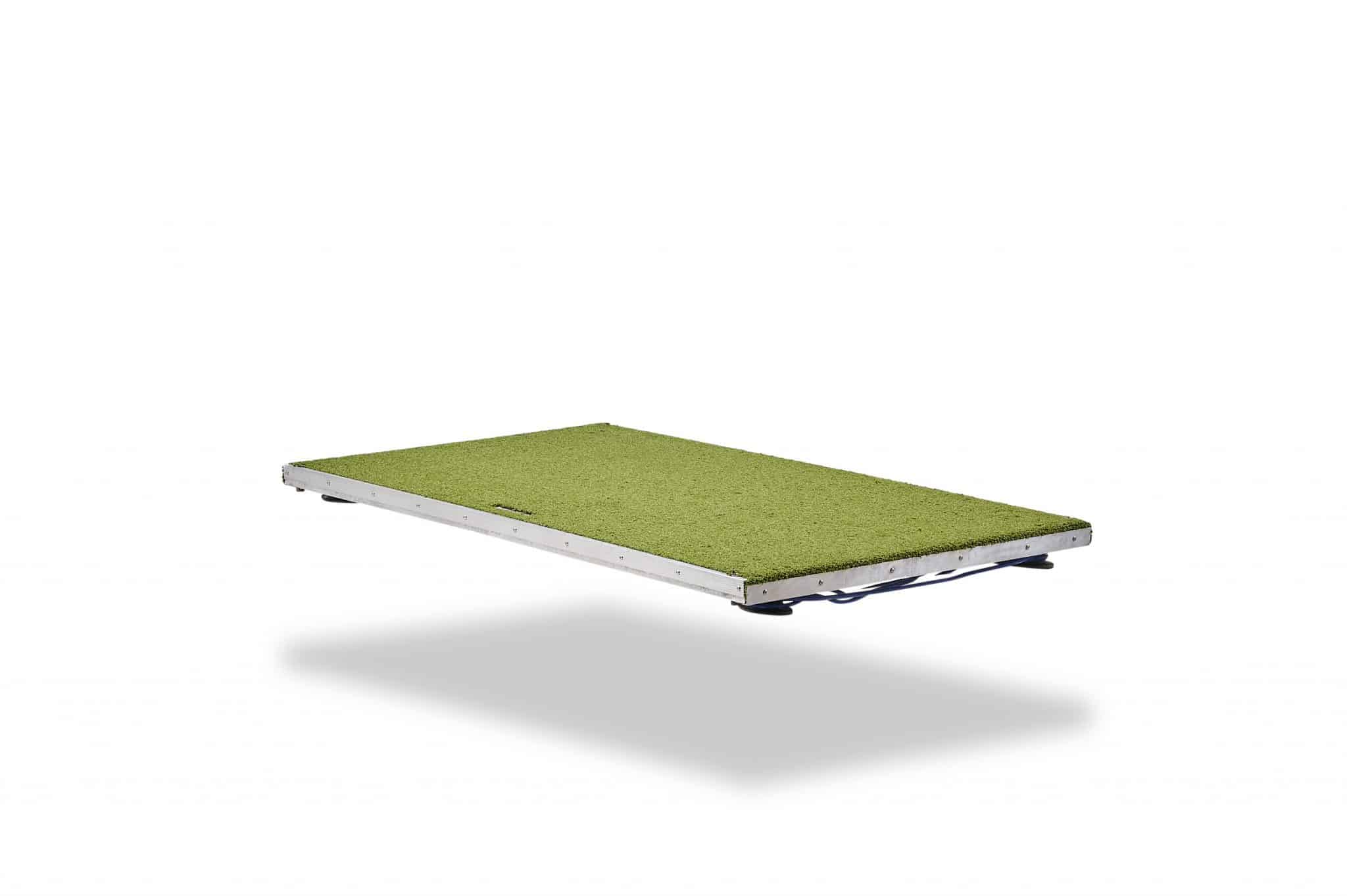

Product weight 94 kg (206.8 lbs)
Platform height from ground Platform sits level with the ground
Dimensions Horse standing area – 2.14m x 1.22m (84.3″ x 48″) (See Recommended Pit Dimensions below)
Maximum weight capacity 1500kg (3300 lbs)
Overload capacity 3000 kg (6600 lbs) – i.e. any sudden movement – for example, a horse rearing
Construction Complete aluminium construction + high quality “non-slip” green rubber flooring

No horses with studs in their shoes must be weighed on this product. Studs must be removed from all the shoes, before any weighing takes place.

Recommended Pit Dimensions

We strongly recommend that the product is delivered, PRIOR to any building work commencing, so as to aid the builder in a PERFECT PIT DESIGN, to include pit drainage to an adjacent drain, for water runoff.

Installation of Horse Weigh Pit Weighing Platforms /
At the time of delivery Horse Weigh would be pleased to advise any client’s builders on a perfect pit design.

Please note that prices are not published on this website. These are available on request from William Bedell at If you are not located In the U.K., please state in which country you are located in.

For UK orders there is a £200.00 + VAT delivery charge.

Delivery time for UK - 10 working days.
